Perimeter protection aims to prevent personnel from entering a dangerous area by using a combination of safety light curtains and physical fences with monitored gates. Such safety systems, particularly when used for monitoring large surfaces, are often installed in external areas exposed to atmospheric agents and in harsh operating conditions.

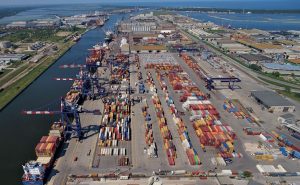

An installation located in the port of Brisbane, Australia, in the “AutoStrad Terminal”.
Robust perimeter light guards are needed to guarantee the functionality of the system. For example, the watertight enclosures of ReeR Safety’s light curtains enable them to be used in harsh environments with exposure to water and steam and external agents (for example: direct sunlight, salt spray, snow, etc.). The WT housings provide mechanical protection for the light curtain and the heated versions (H) feature a thermostatically-controlled heating system which enables them to work down to -25°C.
The position of light curtains in the terminal is highlighted.
One of the requirements relating to safety in automated ports is the protection of access gates to areas where bridge cranes, platform cranes on rails and self-driving vehicles operate.
The safety solution in place is a combination of safety light curtains and physical fences with monitored gates and interlocked safety locks.
The objective is to prevent personnel from entering the “Container Handling and Storage Area”, Dangerous Area.
The dimensions of the gates and the operational conditions (outdoor) require the use of safety light curtains with specific characteristics:
- High operating range
- UV + salt resistance
- IP67 degree of protection
- Double beam system which allows to reduce the sensitivity of the barrier in relation to small objects (for example birds or material carried by the wind) which can cross the gate protected by the barrier causing the safety intervention.
- Resistance to strong temperature changes with related condensation problems.
- Stainless steel accessories and screws.

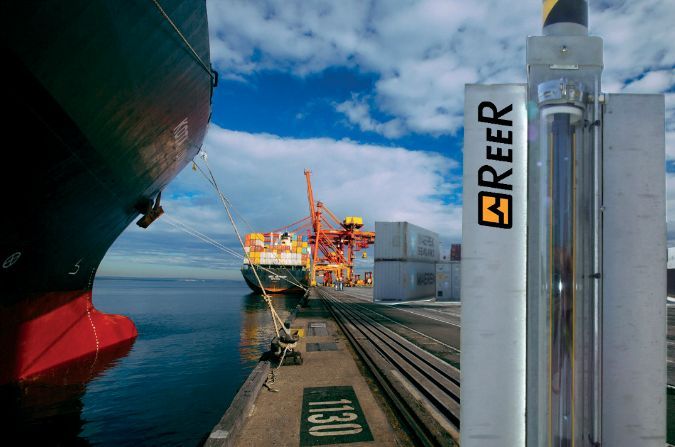

ReeR Safety Perimeter Light Guard, with watertight enclosure and robust mounting column.
ReeR Safety are a specialist in machine safety and so their extensive product range includes solutions for perimeter protection and outdoor access in harsh environments.
Safety Light curtains – Admiral Long Range Dual Beam WTH UV
- Safety level: Type 4 – PLe
- Heated watertight enclosures, IP67, Salt + UV resistance
- Automatic or Manual Start/Restart and EDM
- Long Range: range up to 50 m
- Dual Beam technology
- Pre-wired with 10 m cable
