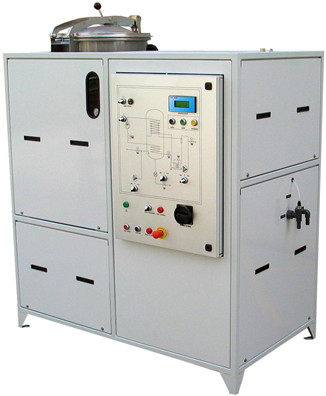

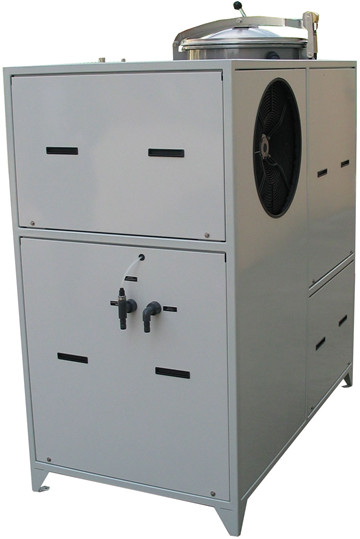

The AquaQube™ is a fully automatic compact wastewater treatment system that is ideal for treating a wide range of industrial waste water using low energy technology. It provides a simple and economical answer to the treatment of wastewater from parts cleaning equipment, coolants from metalworking operations and many other processes. The robust high quality system has a boiler constructed of stainless steel 316 for long life.
What is it for?
The AquaQube™ can be used to efficiently treat a wide range of wastewaters from many industrial processes including oil emulsions, coolants, degreasing solutions and much more. The AquaQube™ effectively resolves the problem of the disposal of industrial polluted water, highly concentrating the contaminating products such as inks, oils, paints and heavy metals and recovering the distilled purified water that can be reused in the production cycle or disposed to drain. This means great savings for you whilst helping the environment. With widespread pollution control regulations, increasing costs for hauling waste away and an environmental conscience, the AquaQube™ is the ideal way to manage the use of natural resources and their disposal.
Technology
The AquaQube™ uses the combined technologies of heat pump and vacuum evaporation that maximises yield with low energy consumption. Under vacuum the boiling point of water can be reduced to 35 – 40° C, using heat pump technology the same circuit is used for heating and condensing and the amount of energy required is reduced considerably. The process separates the water from the polluting products such as oils and greases, producing high quality clear distilled water and a reduced quantity of liquid concentrate.
This low energy system results in a power consumption of only 3 kW/hr, which is up to 7 times less than atmospheric evaporators. Plus you get the added benefit of recovering your water for use again.
No pumps are required for loading waste liquids or for discharging the clean treated water thus eliminating potential pump problems. The control panel shows all process functions and any faults can be easily identified quickly.
Thanks to its special design the unit is very quiet in operation and can be sited right next to process equipment.
The AquaQube™ is easily installed and can be connected to new or existing process equipment quickly.
The benefits
The system is very versatile and is not affected by changes in the wastewater supply as is the case with other methods. Water after processing by AquaQube™ requires no further treatment. It produces no emissions to atmosphere and is very quiet in operation. It generates cost savings through reduced water consumption and removal of waste off site. The fully automatic operation requires little operator time and is easy to use.
The AquaQube™14 is the first in a new line of compact water treatment systems from Solutex with larger models planned in the near future.
